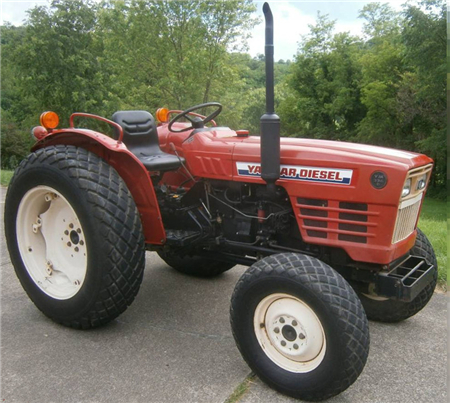

This is the COMPLETE Parts Manual for the Yanmar YM336, YM336D Tractor. Designed for the repair shops and individuals when ordering parts for their Yanmar YM336, YM336D Tractor. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Yanmar YM336, YM336D Tractor inside and out. Tons of pictures and diagrams at your fingertips!
PARTS MANUAL CONTAINS:
=========
ENGINE 3T84A-N/F/P/S
1. CYLINDER BLOCK
2. GEAR HOUSING
3. CYLINDER HEAD
4. AIR CLEANER(WITH PRE-CLEANER)
5. SILENCER
6. CAMSHAFT
7. MAIN BEARING & CRANKSHAFT
8. PISTON & CONNECTING ROD
9. LUBRICATING OIL SYSTEM
10. COOLING WATER SYSTEM
11. FUEL INJECTION PUMP
12. FUEL INJECTION VALVE
13. FUEL OIL SYSTEM
14. GOVERNOR EQUIPMENT
15. ELECTRIC STARTER & THERMO.DEV.
16. LABELS (FOR ENGINE)
17. STARTER 12V-1.8KW(TYPE S12-77)
18. AC GENERATOR 12V-15A (LT115-52
19. REPAIR KIT (A) (FOR ENGINE)
20. GASKET KIT (A) (FOR ENGINE)
CHASSIS YM336(D)
21. THROTTLE(FLOOR SHIFT TYPE)
22. THROTTLE(COLUMN:EXCEPT U&SCAN)
23. THROTTLE(COLUMN SHIFT:U & SCAN
24. FUEL TANK (EXCEPT PORTUGAL)
25. FUEL TANK (FOR PORTUGAL)
26. FRONT AXLE(1) (YM336:EXCEPT U)
27. FRONT AXLE (1) (YM336:FOR U)
28. FRONT AXLE (2) (FOR YM336)
29. FRONT AXLE (A) (FOR YM336D)
30. FRONT AXLE (B) (FOR YM336D)
31. FRONT AXLE (C) (FOR YM336D)
32. POWER STEERING (EXCEPT SCAN)
33. POWER STEERING (COLUMN : SCAN)
34. POWER STEERING VALVE
35. CLUTCH (EXCEPT SCAN)
36. CLUTCH (COLUMN : SCAN)
37. POWER SHIFT PUMP (FOR A(OLD))
38. POWER SHIFT PUMP(A-NEW&F&STAN)
39. TRANSMISSION HOUSING (FLOOR:A)
40. TRANSMISSION HOUSING (FLOOR:F)
41. TRANSMISSION HOUSING (FLOOR:A)
42. TRANSMISSION HOUSING (FLOOR:F)
43. TRANSMISSION HOUSING (COLUMN)
44. TRANSMISSION HOUSING (COLUMN)
45. TRANSMISSION HOUSING (COLUMN)
46. TRANSMISSION HOUSING (COLUMN)
47. TRANSMISSION GEARS (1) :A(OLD)
48. TRANSMISSION GEARS (1)
49. TRANSMISSION GEARS (2) :A(OLD)
50. TRANSMISSION GEARS (2)
51. FRONT DRIVE & SHIFT(FOR A(OLD)
52. FRONT DRIVE & SHIFT (A(NEW)&F)
53. FRONT DRIVE & SHIFT(COLUMN:SCA
54. FLOOR SHIFT & SHIFT LEVER
55. COLUMN SHIFT
56. RANGE SHIFT LEVER (FOR A(OLD))
57. RANGE SHIFT LEVER(A(NEW)&F&STA
58. REAR HOUSING
59. P.T.O. DRIVING SHAFT
60. P.T.O.SHIFT LEVER (FLOOR SHIFT
61. P.T.O.SHIFT(COLUMN:EXCEPT SCAN
62. P.T.O.SHIFT LEVER(COLUMN:SCAN)
63. REAR AXLE (FOR A(OLD))
64. REAR AXLE (FOR A(NEW)&F&STAN)
65. REAR AXLE HOUSING (FOR A(OLD))
66. REAR AXLE HOUSING(A(NEW)&F&STA
67. BRAKE
68. BRAKE PEDAL (FLOOR SHIFT TYPE)
69. BRAKE PEDAL(COLUMN:EXCEPT SCAN
70. BRAKE PEDAL (COLUMN : SCAN.)
71. TIRES (FRONT&REAR:FOR A&STAN)
72. TIRES (FRONT & REAR : FOR F)
73. HYDRAULIC CYLINDER
74. HYDRAULIC LIFT
75. OIL PRESSURE CONTROL
76. DRAFT CONTROL
77. HYDRAULIC PIPES
78. ELECTRIC PARTS (1) (FLOOR : A)
79. ELECTRIC PARTS (1) (FLOOR : F)
80. ELECTRIC PARTS (2) (FLOOR : A)
81. ELECTRIC PARTS (2) (FLOOR : F)
82. ELECTRIC PARTS (1) (COLUMN: A)
83. ELECTRIC PARTS(2)(COLUMN:STAN)
84. ELECTRIC PARTS (2) (COLUMN: U)
85. ELECTRIC PARTS(2)(COLUMN:P&S.A
86. HOOD (FLOOR SHIFT : A)
87. HOOD (FLOOR SHIFT : FRENCH)
88. HOOD (COLUMN SHIFT : A)
89. HOOD (COLUMN SHIFT : U)
90. HOOD (COLUMN:P & SOUTH AFRICA)
91. FENDER & SEAT (FLOOR SHIFT :A)
92. FENDER & SEAT (FLOOR SHIFT :F)
93. FENDER & SEAT (COLUMN SHIFT:A)
94. FENDER & SEAT (COLUMN : U)
95. FENDER & SEAT (COLUMN :FRENCH)
96. FENDER & SEAT(COLUMN:PORTUGAL)
97. FENDER & SEAT(COLUMN:S.AFRICA)
98. LABELS (FLOOR SHIFT : A)
99. LABELS (FLOOR SHIFT : FRENCH)
100. LABELS (COLUMN SHIFT:A & SCAN)
101. LABELS (COLUMN SHIFT : FRENCH)
102. LABELS (COLUMN : EUROPEAN)
103. LABELS (COLUMN : PORTUGAL)
104. LABELS (COLUMN : S.AFRICA)
105. THREE-POINT HITCH
106. DRAWBAR (EXCEPT U & P)
107. DRAWBAR ( U & P )
108. TOOLS (COLUMN : PORTUGAL)
109. TOOLS (EXCEPT PORTUGAL)
110. TURF-TIRES(FRONT&REAR:A&STAN)
111. TURF-TIRES (FRONT & REAR : F)
112. HEATER (U.S.A. ONLY)
113. FRONT POWER TAKE OFF
114. FRONT & REAR WHEEL WEIGHT
115. ROLL BAR (FOR USA)
=========
Model Specification: Yanmar YM336, YM336D Tractor
Language: English
Total Pages: 212
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…
=========
This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.
Thanks for Visiting!
