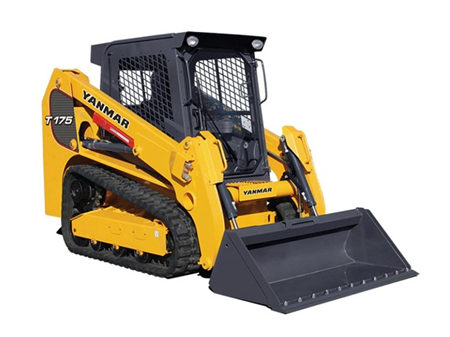

This is the COMPLETE Parts Catalog Manual for the Yanmar T175-1 Compact Track Loader. Designed for the repair shops and individuals when ordering parts for their Yanmar T175-1 Compact Track Loader. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Yanmar T175-1 Compact Track Loader inside and out. Tons of pictures and diagrams at your fingertips!

PARTS CATALOG MANUAL CONTAINS:
=========
MAINTENANCE KITS
1. FILTERS/BELTS
CAB
2. STANDARD CAB
3. CAB DOOR-SWING-OUT-(OPTION)
4. CAB DOOR-LATCHES (OPTIONAL SWING-OUT DOOR)
5. SIDE WINDOWS (OPTION)
6. WINDOW WASHER (OPTION)
7. CAB TILT AND REAR WINDOW
8. INTERIOR COVERS
9. FLOOR PAN / FOOT THROTTLE
10. HEADLINER-HEAT-A/C DUCTS (OPTION)
11. CONSOLE CONTROLS-LEFT SIDE
12. CONSOLE CONTROLS-RIGHT SIDE
13. CONSOLE-RIGHT SIDE
14. CONSOLE-LEFT SIDE
15. SEAT
16. MIRROR (OPTION)
17. RADIO (OPTION)
18. HEATER HOSE CIRCUIT (OPTION)
19. HEATER/AIR CONDITIONING BLOWER (OPTION)
20. AIR CONDITIONING CIRCUIT (OPTION)

CHASSIS
21. FRAME-FRONT/UNDER
22. COUNTER WEIGHTS/CENTER FRAME
23. REAR DOOR
24. REAR ACCESS DOORS
25. REAR HOOD
26. REAR HOOD-AIR CONDITIONING CONDENSER ASSEMBLY (OPTION)

ELECTRICAL
27. CHASSIS WIRE HARNESS/COMPONENTS
28. FUSE BOXES/FUSES/RELAYS
29. BATTERY CIRCUIT/ENGINE WIRE HARNESS
30. OPERATOR WIRE HARNESS-CAB
31. WORK LIGHTS CAB/ROPS WIRE HARNESS

ENGINE
32. EXTERNAL COMPONENTS-LEFT SIDE
33. EXTERNAL COMPONENTS-RIGHT SIDE
34. FUEL CIRCUIT
35. FUEL TANK
36. AIR INTAKE/EXHAUST
37. AIR CONDITIONING COMPRESSOR (OPTION)

ENGINE / HYDRAULICS
38. RADIATOR/HYDRAULIC COOLER

TRACKS
39. TRACK ASSEMBLY
40. DUAL-FLANGE IDLER ASSEMBLY
41. DUAL-FLANGE BOGIE WHEEL ASSEMBLY
42. FRONT IDLER ASSEMBLY
43. TRACK DRIVE MOTOR AND SPROCKET
44. TRACK DRIVE MOTOR COMPONENTS

LOADER ARM
45. BOLT-ON COMPONENTS
46. ATTACHMENT BRACKET-MANUAL(STANDARD)/BUCKET
47. ATTACHMENT BRACKET MANUAL QUICK COUPLER (OPTION)
48. 14-PIN CONNECTOR (OPTION)

LOADER ARM HYDRAULICS
49. TILT CIRCUIT
50. LIFT CIRCUIT
51. AUXILIARY HYDRAULICS CIRCUIT-(STANDARD)
52. HIGH-FLOW HYDRAULICS CIRCUIT (OPTION)

HYDRAULICS
53. HYDRAULIC TANK
54. HYDRAULIC DRIVE PUMP CIRCUIT
55. TRACK DRIVE CIRCUIT-RIGHT SIDE
56. TRACK DRIVE CIRCUIT-LEFT SIDE
57. HYDRAULIC PUMP CIRCUIT-(STANDARD HYDRAULICS)
58. HYDRAULIC PUMP CIRCUIT-(HIGH-FLOW HYDRAULICS-OPTION)
59. SELF-LEVEL CIRCUIT-LIFT/TILT
60. STANDARD AND HIGH-FLOW AUXILIARY HYDRAULICS CIRCUIT
61. PILOT PRESSURE MANIFOLD CIRCUIT
62. FLOAT CIRCUIT-(STANDARD)/RIDE CONTROL-(OPTION)

HYDRAULIC COMPONENTS
63. HYDROSTATIC DRIVE PUMP
64. HYDRAULIC PUMP-STANDARD HYDRAULICS
65. HYDRAULIC PUMP-HIGH FLOW HYDRAULICS
66. HYDRAULIC MAIN VALVE-(STANDARD HYDRAULICS)
67. HYDRAULIC MAIN VALVE-(HIGH FLOW HYDRAULICS-OPTION)
68. SELF LEVEL VALVE (STANDARD)
69. SELF LEVEL VALVE (SWITCHABLE) (OPTION)
70. FLOAT MANIFOLD (STANDARD)
71. RIDE CONTROL MANIFOLD-(OPTION)
72. PILOT PRESSURE MANIFOLD
73. TRACK TENSION CYLINDER
74. TILT CYLINDER
75. LIFT CYLINDER

LABELS
76. FRONT
77. RIGHT SIDE
78. LEFT SIDE
79. REAR
80. ENGINE COMPARTMENT

=========

Model Specification: Yanmar T175-1 Compact Track Loader
Language: English
Total Pages: 95
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

=========
