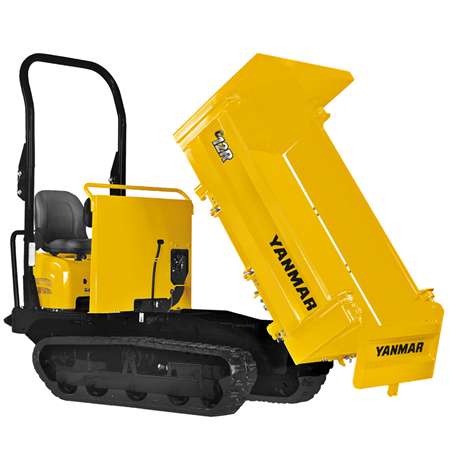

This is the COMPLETE Parts Catalog Manual for the Yanmar C12R-A rubber Crawler Carrier. Designed for the repair shops and individuals when ordering parts for their Yanmar C12R-A rubber Crawler Carrier. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Yanmar C12R-A rubber Crawler Carrier inside and out. Tons of pictures and diagrams at your fingertips!
PARTS CATALOG MANUAL CONTAINS:
=========
C12R-A(US)
1. LABEL
2. SAFETY LABEL
3. REARVIEW MIRROR
4. ACCESSORY
5. SILENCER
6. AIR CLEANER
7. ACCELERATOR LEVER
8. ENGINE MOUNT
9. RADIATOR & MOUNT
10. FUEL TANK & FUEL PIPE
11. BATTERY & CABLE
12. ELECTRIC PART(WIRING)
13. ELECTRIC PART(EQUIPMENT)
14. PULLEY & BELT
15. TRANSMISSION(CASE)
16. TRANSMISSION(SHAFT & GEAR)
17. SIDE CLUTCH FORK & STEERING BRAKE
18. SPROCKET & TRACK ROLLER(Y SPEC.) & CRAWLER
42. (18A)TRACK ROLLER(S SPEC.)
19. CONTROL EQUIPMENT(F.R. LEVER)
20. CONTROL EQUIPMENT(TRAVEL PEDAL)
21. CONTROL EQUIPMENT(BRAKE PEDAL & PARKING LEVER)
22. CONTROL EQUIPMENT(DUMP LEVER)
23. CONTROL EQUIPMENT(STEERING LEV
24. FRAME(STANDARD SPEC.)
25. FRAME(3WD SPEC.)
26. BUMPER
27. COVER,STEP & INSTRUMENT PANEL
28. SEAT & SEAT MOUNT
29. ASSIST BAR
30. BONNET
31. SAFETY GUARD
32. ROPS BAR
33. HYD.OIL CYLINDER
34. HST
35. HYD.OIL TANK & FILTER
36. CONTROL VALVE
37. HYD.OIL PIPING
38. WAGON(3WD SPEC.)
39. WAGON(STANDARD SPEC.)
40. HOOK(3WD SPEC.)
41. HOOK(STANDARD SPEC.)
=========
