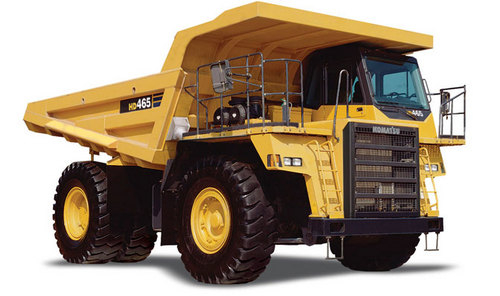

COMPLETE Field Assembly Manual for the Komatsu HD465-7, HD605-7 Dump Truck. It provides you with everything you need to know in order to assembly your Komatsu HD465-7, HD605-7 Dump Truck safely and effectively. Step-by-step assembly procedure, parts installation, adjustment and maintenance procedure after completion of assembly.

MACHINE MODEL SERIAL NUMBERS
HD465-7 7001 and up
HD605-7 7001 and up

Field Assembly Manual Contains:
=========
1. Points changed from model 5
2. Outline of division
3. Dimensions of main components
4. Rough schedule of assembly and welding
5. List of equipments, tools, and consumables
6. Assembly process No.
ASR (Anti Sliped Regulation) (If equipped)
Procedure for welding and assembling three separated body parts
Additional manual for Korea (If equipped)
APPENDIX
Field assembly inspection report

=========

** Model Specification: Komatsu HD465-7, HD605-7 Dump Truck
** Language: English
** Total Pages: 92
** File Format: PDF
** Requirements: Adobe PDF Reader
** Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…

=========

This QUALITY manual is 100 percents COMPLETE and INTACT,
no MISSING/CORRUPT pages/sections to freak you out! It also is Bookmarked and SEARCHABLE to make what you need easy to find. Complete download comes in PDF format which can work under all PC based Windows operating system and Mac also. It saves to your hard-drive and can be burned to CD-ROM. It can be viewed on any computer, as well as zoomed and printed.
