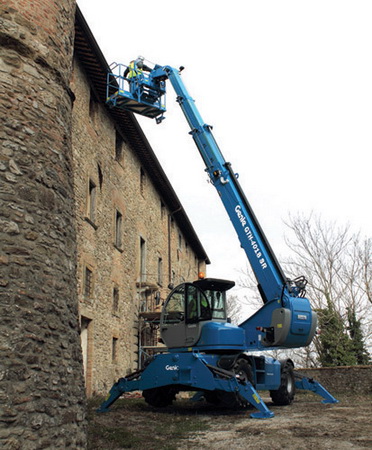

This is the COMPLETE Parts Manual for the Genie 2P/200F, 2P/200 RNE, 2P/200-REM 4400, 2P/300F, 2P/300 RNE, 2P/500-REM 4400, 2P/800-REM, 5500, 3P/1000 RNE Telehandler. Designed for the repair shops and individuals when ordering parts for their Genie Telehandler. This Manual describes and illustrates assemblies, subassemblies, and detail parts needed for service replacement. it Covers every part of your Genie Telehandler inside and out. Tons of pictures and diagrams at your fingertips!
Serial Number Range:
2P/200F from SN 52358
2P/200 RNE from SN 53305
2P/200-REM 4400 from SN 52305
2P/300F from SN 57086 to 61309
2P/300 RNE from SN 57855
2P/500-REM 4400 from SN 56982
2P/800-REM 5500 from SN 52118
3P/1000 RNE from SN 52524
Parts Manual Contains:
=========
How to Read Your Serial Number
Parts Stocking List
How to Order Parts
Service Parts Fax Order Form
100 Decals
101.1 605336 Decals 2P/200F
102.1 605339 Decals 2P/200 RNE
103.1 605451 Decals 2P/200REM 4400
104.1 605455 Decals 2P/300F
105.1 605461 Decals 2P/300RNE.
106.1 605474 Decals 2P/500 REM4400
107.1 605490 Decals 2P/800 REM5500
108.1 605493 Decals 3P/1000 RNE
200 Structure And Frame
201.1 605335 Structure And Frame 2P/200 F
202.1 605337 Structure And Frame 2P/200 RNE.
203.1 605449 Structure And Frame 2P/200 REM4400
204.1 605452 Structure And Frame 2P/300 F
205.1 605456 Structure And Frame 2P/300 RNE View 1
206.1 605457 Structure And Frame 2P/300 RNE View 2
207.1 605458 Structure And Frame 2P/300 RNE View 3
208.1 605462 Strcture And Frame 2P/500 REM4400 View 1
209.1 605463 Strcture And Frame 2P/500 REM 4400 View 2
210.1 605464 Strcture And Frame 2P/500 REM4400 View 3
211.1 605465 Structre And Frame 2P/500 REM4400 View 4
212.1 605475 Structure And Frame 2P/800 REM5500
213.1 605491 Strcture And Frame 3P/1000RNE
300 Hydraulical Part
301.1 605338 Hydraulic Line 2P/200 RNE
302.1 605450 Hydraulic Line 2P/200 REM4400
303.1 605459 Hydraulic Line 2P/300 RNE
304.1 605466 Hydraulic Line 2P/500 REM4400
305.1 605489 Hydraulic Line 2P/800 REM5500
306.1 605492 Hydraulic Line 3P/1000 RNE
400 Electrical Part
401.1 605453 Power Line Without Reel 2P/300 F
402.1 605454 Power LIne With Reel 2P/300 F
403.1 605460 Power Line Without Reel 2P/300 RNE
404.1 605467 Power Line Without Reel 2P/500 REM4400
405.1 605473 Power Line With Reel 2P/500 REM4400
406.1 605494 Power Line Without Reel With Danfoss And Excel
407.1 605495 Power Line With Reel With Danfoss And Excel
408.1 605547 Control Board 3B6 (GYRO or ER Machines)
409.1 605548 Control Board Danfoss (GIROLIFT or R Machines)
410.1 605549 Control Board Tecnord With 2 Joystick (EX Machines)
411.1 605550 Control Board Tecnord With 3 Joystick (EX Machines)
412.1 605551 Cable Reel Danfoss Control Board (Only Girolift 3514 or GTH3514R)
Indices
Part Number Index
Part Description Index
Cross References
Fittings Cross Reference
=========
Model Specification: Genie 2P/200F, 2P/200 RNE, 2P/200-REM 4400, 2P/300F, 2P/300 RNE, 2P/500-REM 4400, 2P/800-REM, 5500, 3P/1000 RNE Telehandler
Language: English
Total Pages: 102
File Format: PDF
Requirements: Adobe PDF Reader
Compatible: All Versions of Windows & Mac, Linux OS, Iphone, Ipad, Android etc…
=========
